ICON 2-3" Suspension Lift, Billet Arms, Stage 6, 21-24 Ford Bronco Sasquatch SKU: 6G-6320

ICON 2-3" Suspension Lift, Billet Arms, Stage 6, 21-24 Ford Bronco Sasquatch

ICON 2-3" Suspension Lift, Billet Arms, Stage 6, 21-24 Ford Bronco Sasquatch

ICON 21-UP Bronco Sasquatch Stage 6 Suspension System BILLET
Free Shipping!
Purchase ICON 2-3" Suspension Lift, Billet Arms, Stage 6, 21-24 Ford Bronco Sasquatch
$7,699.80 SKU: 6G-6320
Fits 2021-24 Ford Bronco
0 Reviews

Product Overview:

Upgrade your 2021-UP Ford Bronco with the ICON Stage 6 Suspension System! Featuring custom valved remote reservoir coilover shocks with CDCV, this system delivers max travel and superior ride quality. The kit includes billet aluminum upper control arms and rear lower links for added strength and articulation. With up to 11.5" front and 14" rear suspension travel, this bolt-on system makes your Bronco an off-road beast.

  • Adjustable Remote Reservoir Coilovers with Compression Damping Control Valves
    CDCV offers 10 Selectable Compression Settings (Soft to Hard)
  • Billet Aluminum Upper Control Arms
  • Billet Aluminum Rear Lower Links
  • 2-3" Front Lift & 1.25-2.25" Rear Lift (over stock Sasquatch-equipped Bronco)

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

Upgrade your 2021-UP Ford Bronco with the ICON Stage 6 Suspension System! Featuring custom valved remote reservoir coilover shocks with CDCV, this system delivers max travel and superior ride quality. The kit includes billet aluminum upper control arms and rear lower links for added strength and articulation. With up to 11.5" front and 14" rear suspension travel, this bolt-on system makes your Bronco an off-road beast.

  • Adjustable Remote Reservoir Coilovers with Compression Damping Control Valves
    CDCV offers 10 Selectable Compression Settings (Soft to Hard)
  • Billet Aluminum Upper Control Arms
  • Billet Aluminum Rear Lower Links
  • 2-3" Front Lift & 1.25-2.25" Rear Lift (over stock Sasquatch-equipped Bronco)

The ICON Vehicle Dynamics Stage 6 Suspension System for the 2021-UP Ford Bronco features precision-manufactured custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos equipped with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use which can lead to damper fade ensuring sustained shock performance at speed through rough terrain.

Stage 6 also features ICON's exclusive Compression Damping Control Valves for precisely dialing in your suspension performance. CDCV controls fluid flow under compression allowing you to achieve the perfect tune whether driving on the street slow-crawling through the rocks or mobbing across the desert at full throttle. To accommodate the increased travel and lift height afforded by the ICON Coilovers this Stage 6 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature ICON's patented Delta Joint PRO which allows for up to 90-degrees freedom of movement.

ICON billet rear lower links employ dual-durometer greaseless bushings at one end and massive FK rod ends at the other to provide the best combination of free articulation and ride quality while offering on-vehicle length adjustment. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

Features:

  • Improved suspension performance and ride quality over stock
  • Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
  • Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control even under hard use
  • Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
  • Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
  • ICON engineered coil springs featuring a unique triple rate rear coil design
  • High strength alloy CNC machined lower bar pins
  • Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10731700) Delta Joint Pro with 90 degrees of total articulation.
  • Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • 100% Bolt-on system - no drilling cutting or welding necessary for install

Tech Notes:





  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
  • APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
  • APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
  • APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR
  • APPLICATION NOTE #134: LIFT HEIGHTS & APP NOTES BASED ON SASQUATCH EQUIPPED VEHICLES
  • TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers certain aftermarket steering components may not be compatible.
  • TECH NOTE: Bronco Everglades will have front lift height range of 1.5-2.5" over stock
  • TECH NOTE: Not compatible with Bronco Raptor

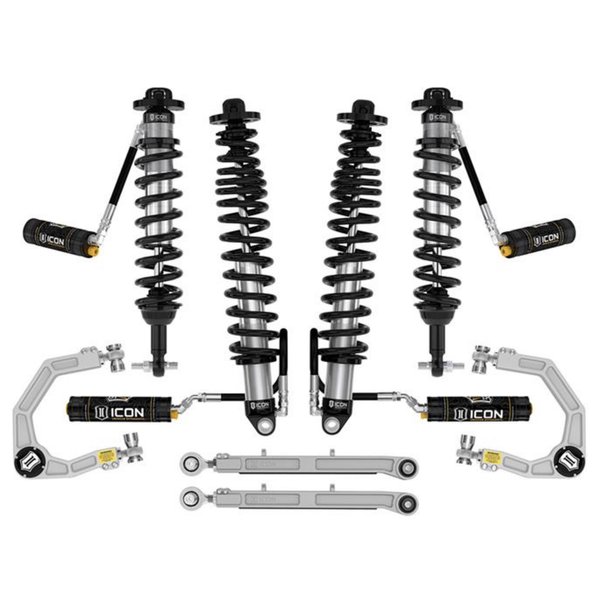

System Components:

  • 48700C (QTY: 1) | 21-UP BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT
  • 48500DJ (QTY: 1) | 21-UP BRONCO BILLET UCA DJ PRO KIT
  • 44000 (QTY: 1) | 21-UP BRONCO BILLET REAR LOWER LINK KIT
  • 48710C (QTY: 1) | 21-UP BRONCO REAR 2.5 VS RR CDCV COILOVER KIT
