Power Steering Pump Brackets Set, Explorer 5.0 Non-AC, 66-77 Ford Bronco SKU: 2029
Power Steering Pump Brackets Set, Explorer 5.0 Non-AC, 66-77 Ford Bronco
Product Overview:

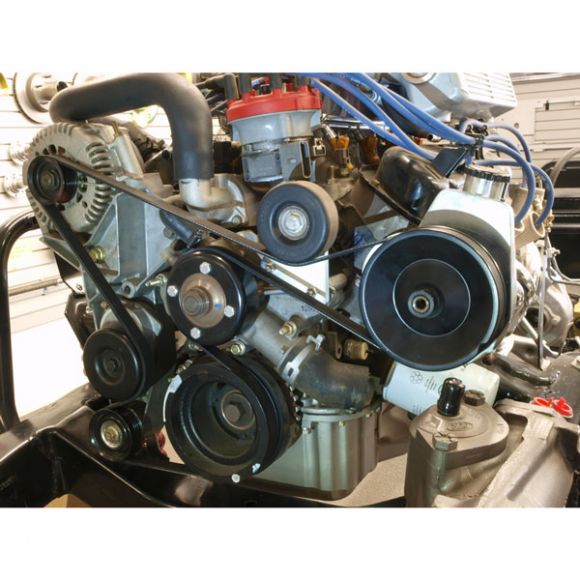

This bracket set is the simple way to get a Saginaw/Delphi pump to fit on your 96-2001 Explorer 5.0 engine.
Full description
Q&A
Have a question? Click Here to submit your question.
Asked by Anonymous, May 5, 2023
Q: Does this come with the idler pulley?
Answered by ☆ sales - May 11, 2023
A: The kit does not include an idler pulley, you will need to source your own.
Asked by Clint, April 17, 2023
Q: Will this fit on a 92 mustang motor? I'm adding the Explorer serpentine system on my motor.
Answered by ☆ sales - April 20, 2023
A: This will fit a Mustang motor, with the Explorer front dress. It does not fit or work with the Mustang front dress.
Asked by Nick, March 5, 2023
Q: Is there a way or bracket that allows you to run AC and this PS pump with the explorer front accessory drive.
Answered by ☆ sales - March 6, 2023
A: Yes, check out part #'s 7127 and 7129. One bracket mounts the Delphi/Saginaw pump low, and the other is an A/C bracket to allow mounting a SD7 a/c compressor above the pump.
Asked by nick, April 13, 2022
Q: what saginaw pump is used with this? mine only has one bolt on the back, the lower one shown on your pump is not there
Answered by ☆ sales - April 14, 2022
A: We use our #2006, 2008, or 2071, similar to what is used on some 2000 era GM vehicles.
Asked by Adam, November 1, 2021
Q: Hello,
I do not have a belt tensioner on my PS system, the current PS pump bracket is slotted so I can rotate the pump to adjust tension. is there a bracket available that will work with this system and allow my to tension the belt like my current setup?
Answered by ☆ sales - November 1, 2021
A: No, or not that we have seen. Only with a tensioner.
Asked by Stan, April 25, 2016
Q: Which fan belt should be used with this conversion?
Answered by ☆ sales - April 29, 2016
A: We have a belt available, #2064, it comes in the #2021 kit.
Asked by Anonymous, March 30, 2016
Q: Will this bracket work with remaining E150 front dress(RR water pump, 4G alt)and on a 5.8L?
Answered by ☆ sales - March 31, 2016
A: This kit is only designed to add the heavy duty pump to the stock 96-01 5.0 explorer front dress. You may be able to make it work with modifications.
