WH Custom Fuel Injection Harness, 86-93 Ford 5.0L SKU: 6048
WH Custom Fuel Injection Harness, 86-93 Ford 5.0L
WH Custom Fuel Injection Harness 86-93 Ford 5.0L
Product Overview:

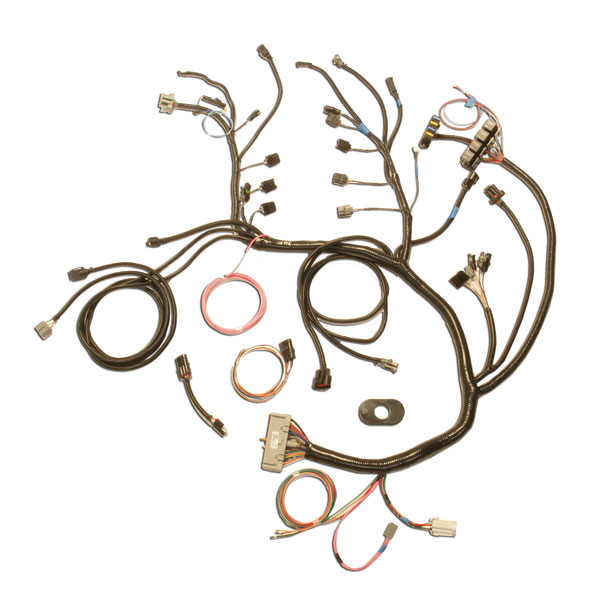

At last! This is our stand alone fuel injection harness sized exclusively for early Broncos using Ford EFI components. This kit is a direct fit for Ford Mass-Air sequential fuel-injection setups and allows Bronco owners to bring their old rigs into the modern world of EFI using components primarily from '86-'93 Mustangs. Extended length wires on some circuits even allows you to utilize some carefully selected components from non-Mustang donor cars in a "mix-and-match" theme. The harness is finished off with hi temp zip loom and harness wrap tape. For mass air flow equipped 302/5.0 and 351W/5.8 engines only. System includes a firewall grommet, all necessary fuses and relays, and complete instructions. This is probably the easiest way to convert your old carbureted engine to SEFI.
• This system is designed to install a Mass Air Flow based Ford EFI 5.0 into a 1966-77 Ford Bronco or 1965-70 Ford Mustang.
• Make sure that all the components you have are compatible before installing them.
• Intakes are fairly interchangeable, make sure the upper and lower intakes match, and the lower intake has a port for the Air Charge Temp sensor (ACT) sensor.
• The fuel rail will dictate which side the intake faces, make sure you have the correct one. This harness is set up for a passenger side facing intake when in stock form.
• This harness does not include provisions for emissions and is not intended for installation on emission controlled vehicles.
• The distributor should be specific for your engine (5.0L / 5.8L) and have the TFI Ignition Module mounted onto the side.
• This harness is set up for a "High Output" firing order of 1-3-7-2-6-5-4-8 in its stock form. Make sure your camshaft and computer match this order.
• Ford EFI systems were not intended for use with long tube headers. The Oxygen Sensors are less accurate (due to dissipated exhaust heat) when mounted further down stream from the cylinder head. However this harness will work with all exhaust systems.
Full description
At last! This is our stand alone fuel injection harness sized exclusively for early Broncos using Ford EFI components. This kit is a direct fit for Ford Mass-Air sequential fuel-injection setups and allows Bronco owners to bring their old rigs into the modern world of EFI using components primarily from '86-'93 Mustangs. Extended length wires on some circuits even allows you to utilize some carefully selected components from non-Mustang donor cars in a "mix-and-match" theme. The harness is finished off with hi temp zip loom and harness wrap tape. For mass air flow equipped 302/5.0 and 351W/5.8 engines only. System includes a firewall grommet, all necessary fuses and relays, and complete instructions. This is probably the easiest way to convert your old carbureted engine to SEFI.
• This system is designed to install a Mass Air Flow based Ford EFI 5.0 into a 1966-77 Ford Bronco or 1965-70 Ford Mustang.
• Make sure that all the components you have are compatible before installing them.
• Intakes are fairly interchangeable, make sure the upper and lower intakes match, and the lower intake has a port for the Air Charge Temp sensor (ACT) sensor.
• The fuel rail will dictate which side the intake faces, make sure you have the correct one. This harness is set up for a passenger side facing intake when in stock form.
• This harness does not include provisions for emissions and is not intended for installation on emission controlled vehicles.
• The distributor should be specific for your engine (5.0L / 5.8L) and have the TFI Ignition Module mounted onto the side.
• This harness is set up for a "High Output" firing order of 1-3-7-2-6-5-4-8 in its stock form. Make sure your camshaft and computer match this order.
• Ford EFI systems were not intended for use with long tube headers. The Oxygen Sensors are less accurate (due to dissipated exhaust heat) when mounted further down stream from the cylinder head. However this harness will work with all exhaust systems.
• This system is designed to install a Mass Air Flow based Ford EFI 5.0 into a 1966-77 Ford Bronco or 1965-70 Ford Mustang.
• Make sure that all the components you have are compatible before installing them.
• Intakes are fairly interchangeable, make sure the upper and lower intakes match, and the lower intake has a port for the Air Charge Temp sensor (ACT) sensor.
• The fuel rail will dictate which side the intake faces, make sure you have the correct one. This harness is set up for a passenger side facing intake when in stock form.
• This harness does not include provisions for emissions and is not intended for installation on emission controlled vehicles.
• The distributor should be specific for your engine (5.0L / 5.8L) and have the TFI Ignition Module mounted onto the side.
• This harness is set up for a "High Output" firing order of 1-3-7-2-6-5-4-8 in its stock form. Make sure your camshaft and computer match this order.
• Ford EFI systems were not intended for use with long tube headers. The Oxygen Sensors are less accurate (due to dissipated exhaust heat) when mounted further down stream from the cylinder head. However this harness will work with all exhaust systems.
At last! This is our stand alone fuel injection harness sized exclusively for early Broncos using Ford EFI components. This kit is a direct fit for Ford Mass-Air sequential fuel-injection setups and allows Bronco owners to bring their old rigs into the modern world of EFI using components primarily from '86-'93 Mustangs. Extended length wires on some circuits even allows you to utilize some carefully selected components from non-Mustang donor cars in a "mix-and-match" theme. The harness is finished off with hi temp zip loom and harness wrap tape. For mass air flow equipped 302/5.0 and 351W/5.8 engines only. System includes a firewall grommet, all necessary fuses and relays, and complete instructions. This is probably the easiest way to convert your old carbureted engine to SEFI.
• This system is designed to install a Mass Air Flow based Ford EFI 5.0 into a 1966-77 Ford Bronco or 1965-70 Ford Mustang.
• Make sure that all the components you have are compatible before installing them.
• Intakes are fairly interchangeable, make sure the upper and lower intakes match, and the lower intake has a port for the Air Charge Temp sensor (ACT) sensor.
• The fuel rail will dictate which side the intake faces, make sure you have the correct one. This harness is set up for a passenger side facing intake when in stock form.
• This harness does not include provisions for emissions and is not intended for installation on emission controlled vehicles.
• The distributor should be specific for your engine (5.0L / 5.8L) and have the TFI Ignition Module mounted onto the side.
• This harness is set up for a "High Output" firing order of 1-3-7-2-6-5-4-8 in its stock form. Make sure your camshaft and computer match this order.
• Ford EFI systems were not intended for use with long tube headers. The Oxygen Sensors are less accurate (due to dissipated exhaust heat) when mounted further down stream from the cylinder head. However this harness will work with all exhaust systems.
• This system is designed to install a Mass Air Flow based Ford EFI 5.0 into a 1966-77 Ford Bronco or 1965-70 Ford Mustang.
• Make sure that all the components you have are compatible before installing them.
• Intakes are fairly interchangeable, make sure the upper and lower intakes match, and the lower intake has a port for the Air Charge Temp sensor (ACT) sensor.
• The fuel rail will dictate which side the intake faces, make sure you have the correct one. This harness is set up for a passenger side facing intake when in stock form.
• This harness does not include provisions for emissions and is not intended for installation on emission controlled vehicles.
• The distributor should be specific for your engine (5.0L / 5.8L) and have the TFI Ignition Module mounted onto the side.
• This harness is set up for a "High Output" firing order of 1-3-7-2-6-5-4-8 in its stock form. Make sure your camshaft and computer match this order.
• Ford EFI systems were not intended for use with long tube headers. The Oxygen Sensors are less accurate (due to dissipated exhaust heat) when mounted further down stream from the cylinder head. However this harness will work with all exhaust systems.
Instruction 1
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Anonymous, October 15, 2023
Q: Is this compatible with a 88' Bronco custom 5.0 302?
⮞ 1 Answer
Answered by ☆ sales - October 16, 2023
A: You would need to look at the instructions and compare your components to the required compatible components. Most commonly it is used with Mustang components.
Asked by Nick, March 8, 2023
Q: Does this need a computer as well or is this the complete package needed to do the efi conversion.
⮞ 1 Answer
Answered by ☆ sales - March 8, 2023
A: You will need to have or source the appropriate computer, it is not included. This is the fuel injection wiring harness only.
Asked by Joe Walker, December 5, 2020
Q: I have a complete'95 Mustang 5.0 HO motor and automatic transmission (AODE). Is this harness compatible with the AODE? This will be going in a '67 Ford truck.
⮞ 1 Answer
Answered by ☆ sales - December 7, 2020
A: The harness addresses the motor only, but, does have a Transmission Controller Connection and Transmission ID Plugs
Asked by Andrew, May 8, 2020
Q: Will this 6048w harness work on my HO 5.0 engine
⮞ 1 Answer
Answered by ☆ sales - May 8, 2020
A: We cannot say for sure. It is best to look over the installation instructions. The are OE Ford reference #'s as well as better descriptions as to what is compatible.
https://s3.amazonaws.com/cdn.wildhorses4x4.com/downloads/WH/6048%2007-25-18.pdf
Asked by Brien, May 1, 2017
Q: Does this harness have an EGR position sensor connector?
⮞ 1 Answer
Answered by ☆ sales - May 2, 2017
A: It does not, This harness does not include provisions for emissions and is not intended for installation on
emission controlled vehicles.
Asked by Adam, April 29, 2016
Q: Where does this harness allow for the computer to be mounted?
⮞ 1 Answer
Answered by ☆ sales - April 29, 2016
A: Typically the computer is mounted under the dash, in the passenger compartment.
Asked by Derrick, March 3, 2016
Q: Will this harness has support an AC compressor if I decide to go that route? How many O2 sensors is it set up for? Thanks
⮞ 1 Answer
Answered by ☆ sales - March 4, 2016
A: The harness is wired for a left and right O2 sensor. It also has an A/C compressor wire.
Asked by EDWARD, October 15, 2015
Q: Hi do this harness right here, will it support a A9L ecu?
⮞ 1 Answer
Answered by ☆ sales - October 16, 2015
A: This harness is designed for the 86-95 Mustang ECU. If it is from that vehicle, in that year range, it will work.
