3.5 inch Lift Kit, System 3 w/Wild Horses Shocks, 66-77 Bronco

Item #: 0103WH3.5N
Add our full leaf spring pack to the basic suspension kit and you will improve the looks while maintaining a comfortable ride, especially when compared to the add-a-leaf kits. This system is a favorite of the cruising and camping crowd.

Fits 66-77 Ford Bronco
Our Price:

Information We Need


* Shock Boot Color

* U-Bolt Kit

* Coil Springs

* Add Pro-Pack Hardware Kit (#1009)


3.5 inch Lift Kit, System 3 w/Wild Horses Shocks, 66-77 Bronco
Item #: 0103WH3.5N


California Residents: Proposition 65 Warning

Description

Basic Suspension Systems Plus System 3
The plus is for ride quality! By adding our full leaf spring pack to the basic kit you will maintain a comfortable ride, especially when compared to the add-a-leaf kits. The look will be the same but the ride is much better. These systems are a favorite of the cruising and camping crowd.

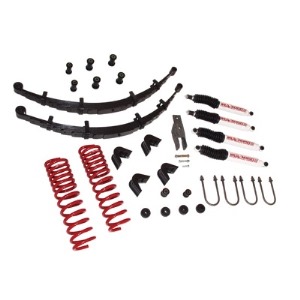

Includes front coils, 14 pc. bushing kit, rear 11 leaf pack springs, rear spring and shackle bushing kit, 4 Extreme shocks with boots and U-bolts. Trac bar drop bracket is included with 3.5" systems.

WE RECOMMEND upgrading the stock diameter U-bolt kit included in this system to our Extreme Duty U-Bolt Kit for only $50.

The force and stress placed on stock components by off-roading is enormous. We noticed that we were bending the stock u-bolt plates so we set out to build some that could take abuse. We also noticed the stock 1/2" u-bolts are pretty weak. It may seem kind of simple to take a piece of thick metal and drill some holes. We have seen those types of plates. The problem is the edge of a plate like this causes a ridged pressure point and can cause the spring to break at that point. We invested in tooling that routers the edge of our plates. In doing so we are able to keep a stock type edge which compliments the spring when it's articulating. These are a must have for trail runners and rock crawlers. Keep your rear axle and springs mounted solid!

You will need to add a drop pitman arm (see below) to keep the draglink and trac bar in alignment unless you already have one or are using the inside of the frame F100 2WD steering box conversion. Call us if you have any questions.

Product Reviews

Write a review

a plus
Aug 3, 2012  |  By caveman
Review star icon Review star icon Review star icon Review star icon Review star icon
this was the nicest lift kit i have installed on any vehicle ever. installed 10 plus in my 30 years of wrenching. vehicle is perfectly level after install. SOFT. this is good, since im missing several discs in my back. pay attention to installing rear leaf upper bolt schackle in the correct direction. if wrong, will hang up travel when bolt contacts frame and limits movement. easy to miss when laying on the floor and wrenching....just sayin. additionally, excellent customer support. these guys are honest and know their product. very happy. my old bronco rides like a dream now.

Smooth riding kit
Dec 3, 2011  |  By Zilla
Review star icon Review star icon Review star icon Review star icon Review star icon
Great kits, rides smooth and is actual advertised lift when completed. Flexes great as well.

suspension system 3
Oct 8, 2011  |  By dirtfella
Review star icon Review star icon Review star icon Review star icon Review star icon
Great service, great product. LOve good old American manufacturing
