3.5 System 16 with WILD HORSES Shocks

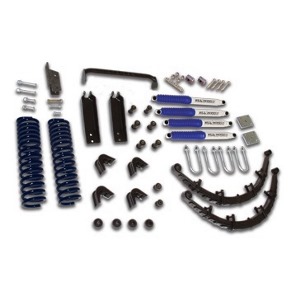

These systems are designed with one shock per corner. They get you the basic items needed for great articulation off-road and are also well suited for street use. Includes front coils, 14 pc. front end bushing kit, long travel shock towers, rear 11 leaf pack springs, rear spring and shackle bushing kit, rear inboard shock hoop, U-bolts and 4 Extreme shocks with boots. Trac bar drop bracket is included with 3.5" to 5.5" systems. The 3.5" coil springs are available in black or red.
The System 16 is pictured with the optional Extreme Duty U-Bolt Kit instead of the stock diameter U-Bolt Kit.
WE RECOMMEND upgrading the stock diameter U-bolt kit included in this system to our Extreme Duty U-Bolt Kit for only $50.
The force and stress placed on stock components by off-roading is enormous. We noticed that we were bending the stock u-bolt plates so we set out to build some that could take abuse. We also noticed the stock 1/2" u-bolts are pretty weak. It may seem kind of simple to take a piece of thick metal and drill some holes. We have seen those types of plates. The problem is the edge of a plate like this causes a ridged pressure point and can cause the spring to break at that point. We invested in tooling that routers the edge of our plates. In doing so we are able to keep a stock type edge which compliments the spring when it's articulating. These are a must have for trail runners and rock crawlers. Keep your rear axle and springs mounted solid!
You will need to add a drop pitman arm (see below) to keep the draglink and trac bar in alignment unless you already have one or are using the inside of the frame F100 2WD steering box conversion. Call us if you have any questions.
