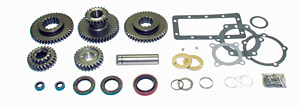

Crawler Transfer Case Gears Rebuild Kit for Dana 20

Item #: 8513
Low-range gear kit for Bronco Dana 20 converts the stock 2.46:1 to 3.15:1
Price:

Description

Dana 20 3.15:1 Low Gear Set
Have a low geared Dana 20 without breaking the bank. Is it time to rebuild your transfer case? Well, there's no time like the present to add the low gear option you've been wanting. This gear set is complete and will replace every gear in your Dana 20 so you will not be mixing old and new gears together. If you are running the 2.46 gears (common in T-shift Bronco 20's) you will gain a 28% increase. If you are running the 2.34 gears (common in J-shift Bronco 20's) you will gain a 34% increase.

Here's an example. Let's say you have an NP 435 transmission with the 6.69:1 low gear. The equation would look like this 6.69 x 2.46 x 4.11 = 67.63:1 (transmission x transfer case x rear end = final ratio).

With the low gear set it would look like this: 6.69 x 3.15 x 4.11 = 86.61:1.

Keep in mind with this low gear option there are no driveshaft or cross member changes. If you can rebuild a transfer case you can install these gears. Additional options you may want to consider are the Dana 20 bearing kit and the Extreme duty Dana 20 output shaft.

™ Dana is a trademark of Dana Limited.
If the Dana logo is not shown, these parts
are not manufactured or authorized by Dana.

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.gov
Crawler Transfer Case Gears Rebuild Kit for Dana 20
Item #: 8513

Product Reviews

Write a review

TeraLow Dana 20
Jul 17, 2015  |  By dao1980
Review star icon Review star icon Review star icon Review star icon Review star icon
With the NP435's first gear and the T-shift Dana 20, my crawl ability was ok. Now that I've added the TeraLow transfer case gears, I can really crawl over and through boulders and rock gardens with ease. Wonderful gearing upgrade option for the ol' Bronco!

Crawler Gears
Apr 8, 2014  |  By Jeff
Review star icon Review star icon Review star icon Review star icon Review star icon
This is my 2nd set that I have installed. Hope this set works as good as the first.
