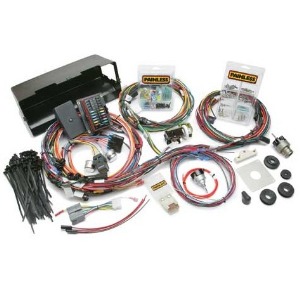

Painless 23 Circuit Wiring Harness With Switches
The result of nearly two years of painstaking engineering, this harness is the most comprehensive, best designed system available anywhere. Designed with input from Bronco owners everywhere, this harness sets a new standard. Not just an update of the existing Bronco harness, this is a completely new harness from top to bottom. It includes a molded plastic glove box to replace the factory cardboard one. The new glove box contains a cutout which allows the 20- circuit covered weatherproof fuse block to be installed in the factory location. An additional 3-circuit covered weatherproof auxiliary fuse block is located under the dash near the 20-circuit fuse block location.

Other features include factory-style molded exterior light connectors, Ford turn signal connectors, Ford dimmer switch connector, and 80+ page instruction manual. This new harness follows the factory routing so installation is a breeze on any 1966-1977 Bronco. It includes the following new switches: wiper, ignition, and headlight.

Like all Painless harnesses, these come with the highest quality XL wire, factory machine crimps and the terminals and connectors you'll need for a successful installation. The straightforward design, printed wire and detailed instructions make that installation a breeze.

Painless Installation Manual

Murf

Feb 28, 2013 | By Murf

Date: Thursday, 7th January 2010 Well, Painless Wiring has outdone them selves with this one. This has been one of the nicest wiring systems I have even put in a Bronco. This kit comes, in my opinion, with about 97% of the most detailed info you can get and with every possible connection/hardware you need. There were a couple of "gray" areas that could have been better detailed that kept me guessing a bit for example the ORIGINAL ignition switch wiring and the steering column splicing details. By trial and error, I got through this and it was all good in the end. When installing this kit guys, TAKE YOUR TIME, dont be in a rush like we all tend to be in. This kit is a step by step process. Be sure to read the booklet ALL the way through page by page with your kit laid out on the floor in front of you while you are reading. It will help you understand it better so you dont make any mistakes or skip any of the steps along the way. If you can read, and know what your colors are, this kit is easy to install. Have fun!!

Best Upgrade

Jan 6, 2012 | By Blue Bronk

This kit is AWESOME and has everything you need for a complete rewire. Now for the first time since I've owned my Bronco, everything works. I would highly recommend getting the loom kit also. It's pricey, but worth the extra money. Take your time and do it right and you will not be disappointed.

Best investment

Oct 25, 2011 | By Jspurl3

Quit chasing shorts and do it. I have installed two and they are very simple. Take your time and enjoy knowing your bronco is a much safer vehicle after

painless wiring harness

Aug 2, 2011 | By broke_okie

I believe this is the easiest wiring harness I have installed. Completed in 2 hrs and my down time was only 2 days thanks to quick shipping from Wild Horses.

okie, you are the fastest harness installer we know! Congratulations. WILD HORSES

Early bronco painless wiring harness

Jul 19, 2011 | By Btorino

The harness is labeled and installation guide gives you step by step installation. The install guide also gives pictures and wiring diagrams that will help for multiple applications.
