HDX Dakota Digital Dash Silver Alloy 66-77 Bronco / 61-66 Pickup SKU: 5995NET

HDX Dakota Digital Dash Silver Alloy 66-77 Bronco / 61-66 Pickup

HDX Dakota Digital Dash Silver Alloy 66-77 Bronco / 61-66 Pickup

HDX Dakota Digital Dash Silver Alloy 66-77 Bronco / 61-66 Pickup
Free Shipping!
Purchase HDX Dakota Digital Dash Silver Alloy 66-77 Bronco / 61-66 Pickup
$1,420.25 SKU: 5995NET
1 Reviews
Selection is required to add Dakota Digital to your cart. Please make a gauge cluster bezel selection. If you have a stock bezel you can use it. If you do not have a stock bezel you should choose one of the options below.:

Product Overview:

NOTE: You will need to use your original bezel. Bezel shown is not included.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

NOTE: You will need to use your original bezel. Bezel shown is not included.

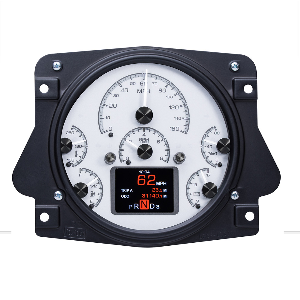

Early Broncos can be a stepping stone for hot rodders into the world of dirt. The flat dash with single round instrument on the left side is a little out of the ordinary, but a bolt-in HDX system makes it user friendly. Six analog instruments join a 2.4" full-color TFT message center while retaining the stock trim ring. Integration with the drivetrain of your choice is a snap.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Analog Gauges

Speedometer·0 -160 MPH (optional metric version 0- 260 kmh)
·Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
Tachometer·0- 8,000 RPM
Oil Pressure·0- 80 psi
Water Temperature·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level·E, 1/4, 1/2, 3/4, F
Voltmeter·9- 17 VDC

Digital Message Centers

Standard Displays ·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty
Performance Meters ·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall
Gauges ·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,990 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)

Built-in Indicators

Indicators ·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

Lighting Technology

Colors·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Brightness·Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
Themes·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Technology·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

Included Sensors

Water Temperature·1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure·1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator·Replaces Ford and/ or GM style speedometer cables with a 10 ft harness.
Bushings·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration and Use

Pushbutton Control·All HDX Series Instrument Systems include LED-lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX Series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.
Calibration·All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.
pdf-file

Instruction 1

pdf-file

Instruction 2

pdf-file

Instruction 3

Review HDX Dakota Digital Dash Silver Alloy 66-77 Bronco / 61-66 Pickup

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


PRODUCT REVIEWS
DANIEL CORDS
Reviewed 05/07/2018
Love this system. This if the first time I can actually believe what my gauges are telling me. easy install.
