COPPER-BRASS RADIATORS


WH Bronco Cooler 4 Cores

All radiators are not created equal and that is especially true when it comes to EB 4 cores. WH has chosen to offer the full spectrum radiators so that you can pick the one suited for your budget and performance requirements. All our Super coolers use in-line tube construction with 14 fins per inch. First up is our Super Cooler 1. It uses a standard automotive core serpentine fin. 1/2" tubes on 9/16" centers. Next is our Super Cooler 2 which uses a high efficiency automotive core serpentine fin. 1/2" tubes on 3/8" centers. Super Cooler 3 uses a maximum efficiency automotive core serpentine fin. 1/2" tubes on 5/16"centers. The Bronco Cooler 2 and 3 are also available with the Tripleflow option for an additional $60.00. Please note that all WH 4 cores use the 4 core mounts and there are no core charges because the entire radiator is brand spanking new.

Tripleflow Option

Over the years manufacturers have built versions of the triple pass radiator for racing in an effort to obtain maximum temperature drop in small or limited space. Core design and adequate air flow are the most important aspects for obtaining maximum temperature drop from radiator inlet to outlet. By building internal walls in the radiator, the coolant is rerouted to pass through the radiator three times resulting in three separate exposures to temperature dropping airflow, with little or no adverse flow restriction. The Tripleflow option is available on the Bronco Cooler 2 and 3. Please note that with the Tripleflow option an external transmission cooler will need to be used if you are running an automatic transmission. No Core Charges - All New Construction

Click here for a printable version

FEATURED PRODUCTS


$269.99
Bronco Cooler 1

$349.99
Bronco Cooler 3

$309.99
Bronco Cooler 2

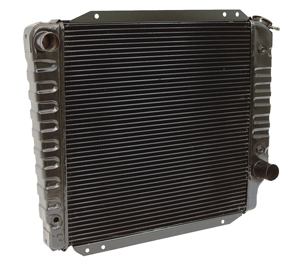

Bronco Cooler 1
Item #: 5061
Bronco Cooler 1
All radiators are not created equal and that is especially true when it comes to EB 4 cores. WH has chosen to offer the full spectrum of radiators so that you can pick the one suited for your budget and performance requirements. All our Super coolers use in-line tube construction with 14 fins per inch. The Super Cooler 1 uses a standard automotive core serpentine fin. 1/2" tubes on 9/16" centers. There are no core charges because the entire radiator is brand spanking new.

Please note that all WH 4 cores REQUIRE the 4 Core Radiator Mounts.

Radiator drain plug sold separately.

Other Shopping Features



Increase Quantity Decrease Quantity

Bronco Cooler 2
Item #: 5062
Bronco Cooler 2
All radiators are not created equal and that is especially true when it comes to EB 4 cores. WH has chosen to offer the full spectrum radiators so that you can pick the one suited for your budget and performance requirements. All our Super coolers use in-line tube construction with 14 fins per inch. The Super Cooler 2 uses a high efficiency automotive core serpentine fin. 1/2" tubes on 3/8" centers. There are no core charges because the entire radiator is brand spanking new. The Bronco Cooler 2 is also available with the Tripleflow option for an additional $60.00.

Please note that all WH 4 cores REQUIRE the 4 Core Radiator Mounts.

Super Cooler with Tripleflow option does not contain a built in AT cooler. An auxilliary cooler will need to be used.

Radiator drain plug sold separately.

Other Shopping Features



Prices start at: $309.99
Various Options Available

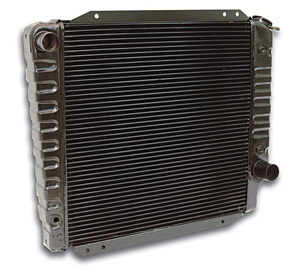

Bronco Cooler 3
Item #: 5063
Bronco Cooler 3
All radiators are not created equal and that is especially true when it comes to EB 4 cores. WH has chosen to offer the full spectrum radiators so that you can pick the one suited for your budget and performance requirements. All our Super coolers use in-line tube construction with 14 fins per inch. The Super Cooler 3 uses a maximum efficiency automotive core serpentine fin. 1/2" tubes on 5/16"centers. There are no core charges because the entire radiator is brand spanking new. The Bronco Cooler 3 is also available with the Tripleflow option for an additional $60.00.

Please note that all WH 4 cores REQUIRE the 4 Core Radiator Mounts.

Super Cooler with Tripleflow option does not contain a built in AT cooler. An auxilliary cooler will need to be used.

Radiator drain plug sold separately.

Other Shopping Features



Prices start at: $349.99
Various Options Available

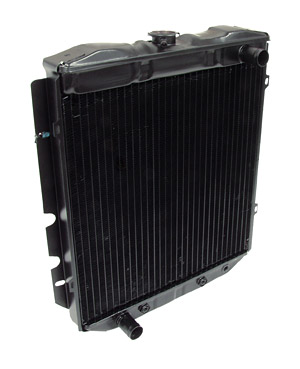

6 Cylinder Radiator
Item #: 5016
High efficiency 3 core replacement radiator for your 6 banger.

Other Shopping Features



Increase Quantity Decrease Quantity

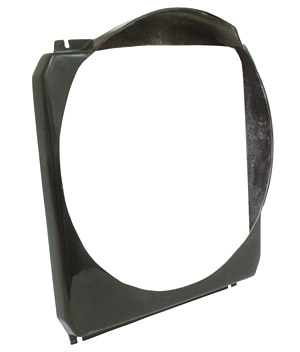

Fan Shroud V8 only
Item #: 5018
This is a must if you expect to keep your Bronco cool on the trail. Without a fan shroud, the fan pulls air around the radiator instead of through it. This fan shroud is available in fiberglass or steel.

Other Shopping Features



Prices start at: $69.99
Various Options Available

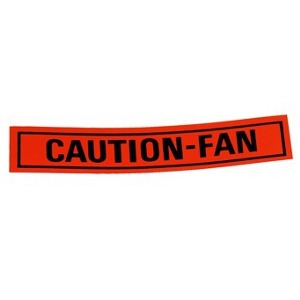

CAUTION - FAN Sticker
Item #: 9327
CAUTION-FAN Sticker

Other Shopping Features



Increase Quantity Decrease Quantity

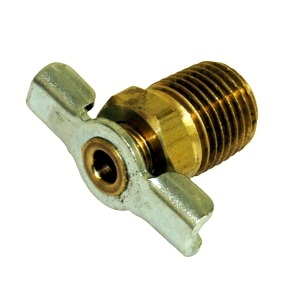

Radiator Drain Plug - 1/4" Brass
Item #: 5064
Radiator Drain Plug - 1/4" Brass

Other Shopping Features



Increase Quantity Decrease Quantity

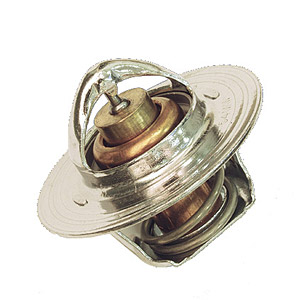

Heavy Duty Thermostat 180
Item #: 5043
Heavy Duty Thermostat 180
Other Shopping Features



Increase Quantity Decrease Quantity

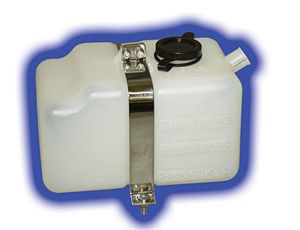

Radiator Overflow Bottle
Item #: 5045
Just like the original 73-77 but with beautiful polished stainless steel mounting straps. These were designed to mount on top of the passenger side wheel well. They can be used on earlier models also.

Other Shopping Features



Increase Quantity Decrease Quantity

EME 13lbs Rad Cap
Item #: 5046
Electroolysis Protection Cap
A special radiator cap that includes a sacrificial magnesium anode that protects aluminum and other soft material engine components from electrolysis. We recommend the use of this special EME cap for use with all of our radiators.

Other Shopping Features



Increase Quantity Decrease Quantity

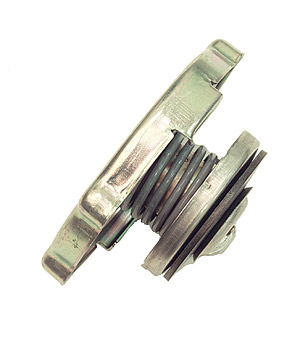

13 lbs. Radiator Cap
Item #: 5040
13 lbs. Radiator Cap
Other Shopping Features



Increase Quantity Decrease Quantity

WH Staggered 4 Core Radiator
Item #: 5010
WH Staggered 4 Core Radiator

Other Shopping Features



Increase Quantity Decrease Quantity

S.S. Radiator Air Dam
Item #: 5003
This new 3 piece stainless steel air dam will help direct the air flow through the radiator core. It's shown with the center piece installed. If you are not using hood pins you just leave off the center piece. Either way it's a functional and great looking addition to your Bronco's engine compartment.

Other Shopping Features



Increase Quantity Decrease Quantity

Radiator Guard
Item #: 5002
This is the cheapest radiator insurance you can buy. These fit all WH radiators. If the fan blade gets too close to the core you will hear it on the guard. This should give you time to correct the situation. They are available in black and blue.

CLICK HERE for Installation Instructions

Other Shopping Features



Prices start at: $34.99
Various Options Available

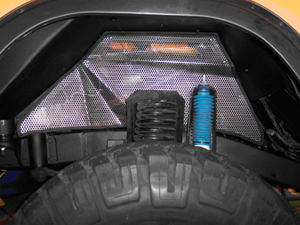

Ventilators Inner Fender Vents
Item #: 5070
Keeping the Bronco cool can be a challenge. Part of the problem is the lack of air flow which causes high under hood temperatures. Here's one product that will definitely help. The Ventilators are laser cut from 18 guage stainless steel. They allow the hot air to escape through the inner fenders while still keeping most debris out of the engine compartment. Customers report up to 40 degree change in under hood temps. That will help keep you running cooler. Ventilators are sold in pairs.

CLICK HERE for Installation Instructions

Other Shopping Features



Increase Quantity Decrease Quantity




QUESTIONS? PHONE: (209) 943-0991 EMAIL: sales@wildhorses4x4.com
