DANA 44 PARTS


66-77 Broncos came with the Dana 30 (66-71 1/2) and the Dana 44 (71 1/2-77). In 1976, Ford equipped the Dana 44 with disc brakes. The easiest way to identify which front end you have is to look at the steering knuckles. The Dana 30 uses king pins which are held in with four bolts on the top and bottom. The Dana 44 uses ball joints which are held in with large nuts (see illustrations below).

Dana 44 Front End Parts (71 1/2-77)




Note: All of the parts in this illustration will not apply to all years. Identify your front end and then check the part description for proper application.

Spindles

There are 3 different spindles that were used from 66-77. All Bronco Dana 30's and 71-72 1/2 Dana 44's use a spindle with the spindle/outer axle seal pressed into the back of it. These have 6 bolt holes. The 72 1/2-75's do not have the spindle/outer axle seal pressed into the back. It is located on the outer axle seal flange which is pressed onto the outer axle itself. These also have 6 bolt holes. The 76-77 disc brake spindle is easily identified by its 5 bolt holes. All new spindles come with spindle bearings.


Click here for a printable version

FEATURED PRODUCTS


$29.99
Lower Ball Joint

$89.99
Dana 44 Differential Rebuild Kit

$97.99
Warn Premium Locking Hubs

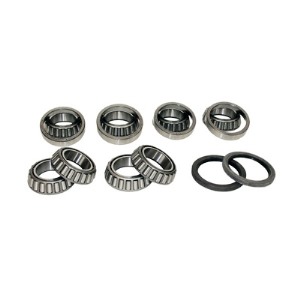

Wheel Bearing Kit
Item #: 8856
Wheel Bearing Kit.
Includes 4 bearings, 4 races, and 2 seals.

Other Shopping Features



Prices start at: $49.99
Various Options Available

Outer Wheel Bearing
Item #: 8847
Outer Wheel Bearing

Other Shopping Features



Increase Quantity Decrease Quantity

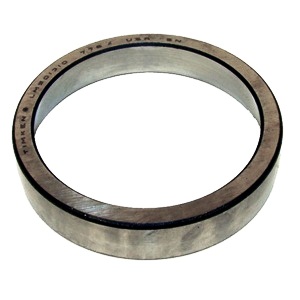

Outer Race
Item #: 8849
Outer Race

Other Shopping Features



Increase Quantity Decrease Quantity

Inner Race
Item #: 8851
Inner Race

Other Shopping Features



Increase Quantity Decrease Quantity

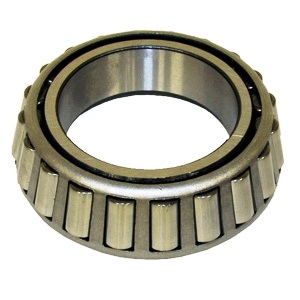

Inner Wheel Bearing
Item #: 8853
Inner Wheel Bearing

Other Shopping Features



Increase Quantity Decrease Quantity

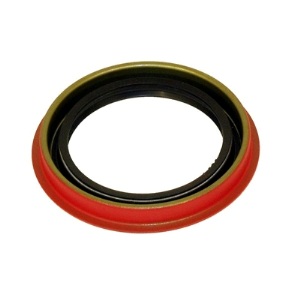

Hub Seal 69-77
Item #: 8834
Hub Seal 69-77

Other Shopping Features



Increase Quantity Decrease Quantity

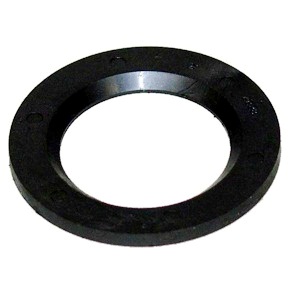

Spindle/Outer Axle Seal
Item #: 8862
Spindle/Outer Axle Seal

Other Shopping Features



Increase Quantity Decrease Quantity

Outer Axle Spacer
Item #: 8861
Outer Axle Spacer

Other Shopping Features



Increase Quantity Decrease Quantity

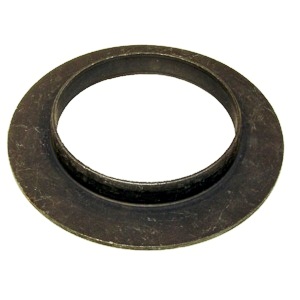

Outer Axle Seal Slinger 72 1/2-77
Item #: 8860
Outer Axle Seal Slinger 72 1/2-77

Other Shopping Features



Increase Quantity Decrease Quantity

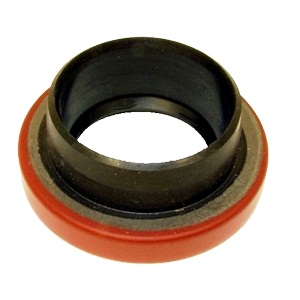

Dana 44 Inner Axle Seal
Item #: 8877
Dana 44 Inner Axle Seal. 2 needed for rebuild.

Other Shopping Features



Increase Quantity Decrease Quantity

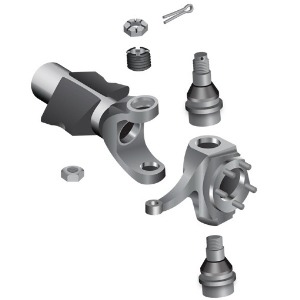

Ball Joints Upper & Lower
Item #: 8823
Ball Joints Upper & Lower
Two sets needed for complete front end.

Other Shopping Features



Increase Quantity Decrease Quantity

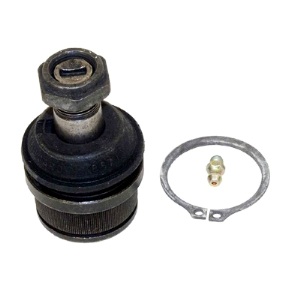

Lower Ball Joint
Item #: 8821
Lower Ball Joint

Other Shopping Features



Increase Quantity Decrease Quantity

Warn Premium Locking Hubs
Item #: 8805
Warn Premium Locking Hubs
The Warn Premium hub is a no compromise hub designed for the hard-core off-roader or truck owner who will accept nothing less than the industry standard in performance. Features like all metal construction, dual dial seals to keep contaminants out, ZA alloy dial, heavy detents for positive engagement, and durable chrome plating for corrosion resistance are all backed up with a limited lift-time warranty.

While you are at it, you may want to consider a set of hub fuses. In most driving conditions the hub fuse will fail before the U-joint. The fuse can be replaced in just a few minutes with no special tools, versus who knows how long if you explode a U-joint. We have actually had to grind out front axles on the trail to remove and replace them, and yes, our foot was in the throttle. Save yourself some work and hassle with the hub fuse.

Other Shopping Features



Increase Quantity Decrease Quantity

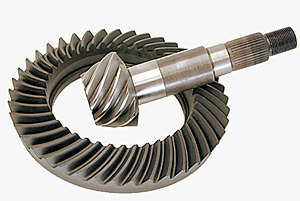

Dana 44 3.54 Ring & Pinions
Item #: 8928
Dana 44 3.54 Ring & Pinion

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 44 4.10 Ring & Pinions
Item #: 8930
Dana 44 4.10 Ring & Pinion

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 44 4.56 Ring & Pinions
Item #: 8932
Dana 44 4.56 Ring & Pinion

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 44 Differential Rebuild Kit
Item #: 8937
Dana 44 Differential Rebuild Kit
Includes differential and pinion bearings and races, seal, gasket, shims, gear marking compound and ring gear bolts. This is a master kit - not to be confused with install kits that leave out the differential bearings and some of the other parts.

Other Shopping Features



Increase Quantity Decrease Quantity

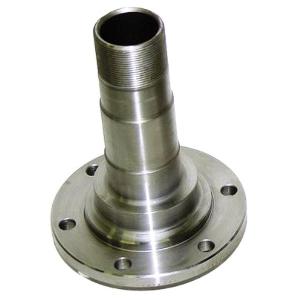

Spindle 72 1/2-75 (New)
Item #: 8909
Spindle 72 1/2-75 (New)

Other Shopping Features



Increase Quantity Decrease Quantity

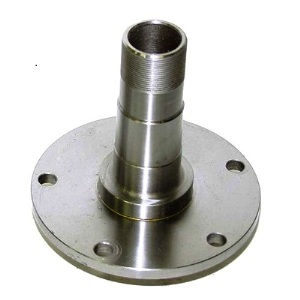

Spindle 76-77
Item #: 8913
Spindle 76-77

Other Shopping Features



Increase Quantity Decrease Quantity

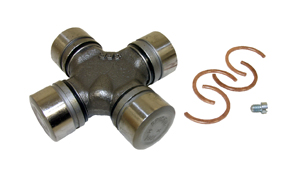

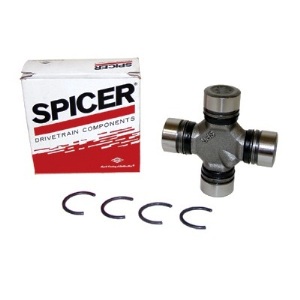

Stock Axle U-Joint (Non-Greasable)
Item #: 8864
Axle U-Joint (Non-Greasable)
Dana/Spicers U-joint for Stock Bronco Dana 30/44 front axles only.

Other Shopping Features



Increase Quantity Decrease Quantity

Stock Axle U-Joint (Greasable)
Item #: 8868
Axle U-Joint (Greasable)
Dana/Spicers U-joint for Stock Bronco Dana 30/44 front axles only.

Other Shopping Features



Increase Quantity Decrease Quantity

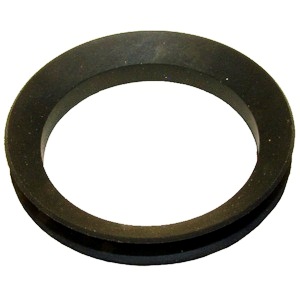

Spindle Seal 66-72 1/2
Item #: 8840
Spindle Seal 66-72 1/2

Other Shopping Features



Increase Quantity Decrease Quantity

Spindle Bearing 66-77
Item #: 8843
Spindle Bearing 66-77

Other Shopping Features



Increase Quantity Decrease Quantity

Spindle Nut Kit
Item #: 8845
Spindle Nut Kit

Other Shopping Features



Increase Quantity Decrease Quantity

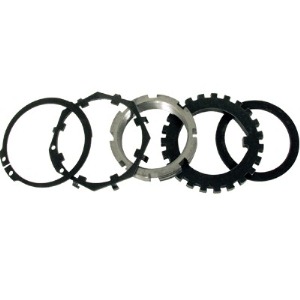

Stage 8 X Lock Spindle Locknut
Item #: 8841
Stage 8 Locking Spindle Nut
Stage 8 Locking Fasteners developed this patented Locking Spindle Nut for the United States military and the heavy equipment industry to increase the durability and reliability of special use vehicles. Now 4 wheel drive off road enthusiasts can enjoy the comfort of knowing rugged driving conditions will not loosen the front spindles on their vehicles. The Stage 8 Locking Spindle Nut is guaranteed not to fail.

The assembly is comprised of five parts: a thrust washer; a specialized notched washer; the spindle nut (which can be set to an individual pre-load value); a locking retainer; and a heavy spring steel snap ring.

The Locking Spindle Nut assembly is easily installed without any specialized tools. The system is adaptable to just about any application and specification. The spindle nut itself can be locked within ½ degree of any position so you will never have to over or under torque and will maintain a requir
