DANA 30 PARTS


66-77 Broncos came with the Dana 30 (66-71 1/2) and the Dana 44 (71 1/2-77). In 1976, Ford equipped the Dana 44 with disc brakes. The easiest way to identify which front end you have is to look at the steering knuckles. The Dana 30 uses king pins which are held in with four bolts on the top and bottom. The Dana 44 uses ball joints which are held in with large nuts (see illustrations below).

Dana 30 Front End Parts (66-71 1/2)



Note: All of the parts in this illustration will not apply to all years. Identify your front end and then check the part description for proper application.

Spindles

There are 3 different spindles that were used from 66-77. All Bronco Dana 30's and 71-72 1/2 Dana 44's use a spindle with the spindle/outer axle seal pressed into the back of it. These have 6 bolt holes. The 72 1/2-75's do not have the spindle/outer axle seal pressed into the back. It is located on the outer axle seal flange which is pressed onto the outer axle itself. These also have 6 bolt holes. The 76-77 disc brake spindle is easily identified by its 5 bolt holes. All new spindles come with spindle bearings.


Click here for a printable version

FEATURED PRODUCTS


$8.99
Dana 30 Outer Housing Seal

$10.99
King Pin Shim Pack

$144.99
Dana 30 4.10 Ring & Pinions

Wheel Bearing Kit
Item #: 8856
Wheel Bearing Kit.
Includes 4 bearings, 4 races, and 2 seals.

Other Shopping Features



Prices start at: $49.99
Various Options Available

Outer Wheel Bearing
Item #: 8847
Outer Wheel Bearing

Other Shopping Features



Increase Quantity Decrease Quantity

Outer Race
Item #: 8849
Outer Race

Other Shopping Features



Increase Quantity Decrease Quantity

Inner Race
Item #: 8851
Inner Race

Other Shopping Features



Increase Quantity Decrease Quantity

Inner Wheel Bearing
Item #: 8853
Inner Wheel Bearing

Other Shopping Features



Increase Quantity Decrease Quantity

Hub Seal 66-68
Item #: 8832
Hub Seal 66-68

Other Shopping Features



Increase Quantity Decrease Quantity

Hub Seal 69-77
Item #: 8834
Hub Seal 69-77

Other Shopping Features



Increase Quantity Decrease Quantity

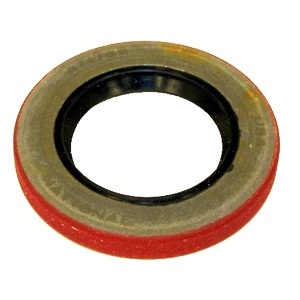

Dana 30 Outer Housing Seal
Item #: 8876
Dana 30 Outer Housing Seal

Other Shopping Features



Increase Quantity Decrease Quantity

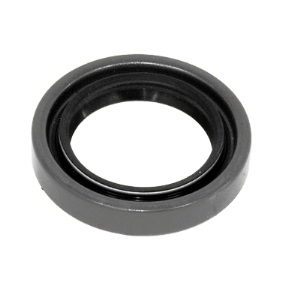

Dana 30 Inner Housing Seal
Item #: 8875
Dana 30 Inner Housing Seal

Other Shopping Features



Increase Quantity Decrease Quantity

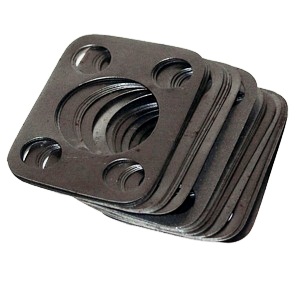

King Pin Shim Pack
Item #: 8811
King Pin Shim Pack

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 30 3.54 Ring & Pinions
Item #: 8922
Dana 30 3.54 Ring & Pinions

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 30 4.10 Ring & Pinions
Item #: 8924
Dana 30 4.10 Ring & Pinions

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 30 4.56 Ring & Pinions
Item #: 8926
Dana 30 4.56 Ring & Pinion

Other Shopping Features



Increase Quantity Decrease Quantity

Dana 30 Differential Rebuild Kit
Item #: 8935
Dana 30 Differential Rebuild Kit
Includes differential and pinion bearings and races, seal, gasket, shims, gear marking compound and ring gear bolts. This is a master kit - not to be confused with install kits that leave out the differential bearings and some of the other parts.

Other Shopping Features



Increase Quantity Decrease Quantity

Warn Premium Locking Hubs
Item #: 8805
Warn Premium Locking Hubs
The Warn Premium hub is a no compromise hub designed for the hard-core off-roader or truck owner who will accept nothing less than the industry standard in performance. Features like all metal construction, dual dial seals to keep contaminants out, ZA alloy dial, heavy detents for positive engagement, and durable chrome plating for corrosion resistance are all backed up with a limited lift-time warranty.

While you are at it, you may want to consider a set of hub fuses. In most driving conditions the hub fuse will fail before the U-joint. The fuse can be replaced in just a few minutes with no special tools, versus who knows how long if you explode a U-joint. We have actually had to grind out front axles on the trail to remove and replace them, and yes, our foot was in the throttle. Save yourself some work and hassle with the hub fuse.

Other Shopping Features



Increase Quantity Decrease Quantity

Stock Axle U-Joint (Non-Greasable)
Item #: 8864
Axle U-Joint (Non-Greasable)
Dana/Spicers U-joint for Stock Bronco Dana 30/44 front axles only.

Other Shopping Features



Increase Quantity Decrease Quantity

Stock Axle U-Joint (Greasable)
Item #: 8868
Axle U-Joint (Greasable)
Dana/Spicers U-joint for Stock Bronco Dana 30/44 front axles only.

Other Shopping Features



Increase Quantity Decrease Quantity

Spindle Seal 66-72 1/2
Item #: 8840
Spindle Seal 66-72 1/2

Other Shopping Features



Increase Quantity Decrease Quantity

Spindle Bearing 66-77
Item #: 8843
Spindle Bearing 66-77

Other Shopping Features



Increase Quantity Decrease Quantity

Spindle Nut Kit
Item #: 8845
Spindle Nut Kit

Other Shopping Features



Increase Quantity Decrease Quantity

King Pin Rebuild Set
Item #: 8810
Here's the king pin Rebuild set for the Dana 30 front end. It includes the cup, race, dampener, washer, bearing, and seal. You will need one for the top and another for the bottom on each side. That's a total of four for the whole front end.

Other Shopping Features



Increase Quantity Decrease Quantity
