COOLING FANS & OIL COOLERS




Click here for a printable version

FEATURED PRODUCTS


$158.99
6 Pass Oil Cooler w/ 11/32 Inlets

$224.99
17" High Output Radiator Fan

$37.99
Rigid 18" Steel Fan - Reverse Rotation

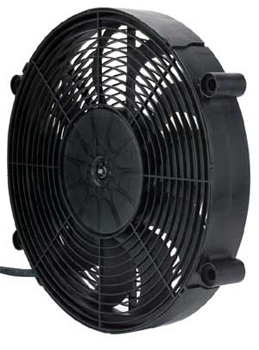

17" High Output Radiator Fan
Item #: 5051
17" High Output Radiator Fan
Designed to be used as a primary fan, replacing your stock mechanical fan, this unit features a dual speed motor that can move either 2400 cfm (high speed) or 1800 cfm (low speed) with a 24 or 18 amp draw respectively. Mounts as either as a pusher or puller fan without having to reverse the blade or rewire the motor. Requires a mere 2.7 inches of clearance. Features curved blades for quiet operation.

Important Note: While this fan can be mounted as a pusher, there is not enough vertical clearance within the Bronco core support for it to bolt up in front of the radiator. You will also want to be sure to have at least 3 inches of clearance between the back of the radiator and pulleys, or anything else it might hit, to allow for body flex and engine movement, otherwise contact may occur.

Other Shopping Features



Increase Quantity Decrease Quantity

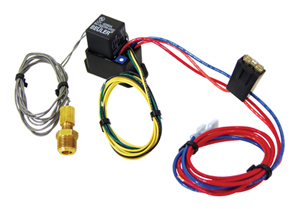

Adjustable Thermostatic Fan Control
Item #: 5052
Our adjustable fan controller can be set to turn on the fan at the temperature you specify between 150 and 240 degrees. The turn off temperature is ten degrees less than your turn on setting. A 30/40 Amp heavy duty relay is included. It also comes with an A/C override circuit. Maximum capacity: 25 Amps.

CLICK HERE for Installation Instructions

Other Shopping Features



Increase Quantity Decrease Quantity

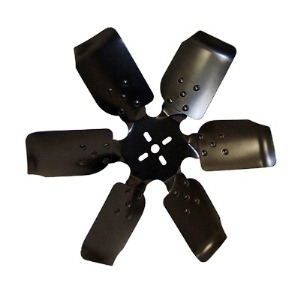

Rigid 18" Steel Fan - Standard Rotation
Item #: 5053
Unlike flex fans which flatten out and pull less air as RPMs climb, our rigid all metal fans provide maximum full time air flow. This is what you want for the majority of off-roading where speed is slow but RPMs are higher. They are rated up to 8000 RPMs. We offer standard and reverse rotation.

Other Shopping Features



Increase Quantity Decrease Quantity

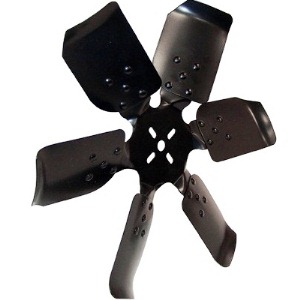

Rigid 18" Steel Fan - Reverse Rotation
Item #: 5055
Unlike flex fans which flatten out and pull less air as RPMs climb, our rigid all metal fans provide maximum full time air flow. This is what you want for the majority of off-roading where speed is slow but RPMs are higher. They are rated up to 8000 RPMs. We offer standard and reverse rotation.

Other Shopping Features



Increase Quantity Decrease Quantity

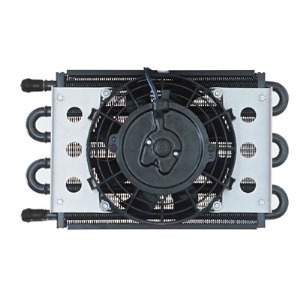

6 Pass Oil Cooler w/ 11/32 Inlets
Item #: 5057
6 Pass Oil Cooler w/ 11/32 Inlets
Perfect for cooling transmission or power steering fluid, our Remote Coolers combine a 6-pass, high-efficiency oil cooler core with a 400 CFM 7" electric fan for maximum cooling in a small package.

The cooler core features 1/2" copper tubes and 3/4" aluminum fins with plastic edge guard protectors and comes with a black powder-coated finish. The electric fan mounts solidly to the cooler core with clear anodized billet aluminum brackets. 15,500 GVW. These can be used as a power steering fluid cooler or an auxiliary transmission oil cooler.

Over all size: 7-1/2" x 12" x 3-7/8"

Other Shopping Features



Increase Quantity Decrease Quantity

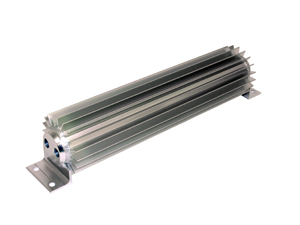

Dual Pass Oil Cooler
Item #: 5059
The Dual Pass Oil Cooler can be used as a power steering fluid cooler or an auxiliary transmission oil cooler.

Other Shopping Features



Increase Quantity Decrease Quantity

Ventilators Inner Fender Vents
Item #: 5070
Keeping the Bronco cool can be a challenge. Part of the problem is the lack of air flow which causes high under hood temperatures. Here's one product that will definitely help. The Ventilators are laser cut from 18 guage stainless steel. They allow the hot air to escape through the inner fenders while still keeping most debris out of the engine compartment. Customers report up to 40 degree change in under hood temps. That will help keep you running cooler. Ventilators are sold in pairs.

CLICK HERE for Installation Instructions

Other Shopping Features



Increase Quantity Decrease Quantity




QUESTIONS? PHONE: (209) 943-0991 EMAIL: sales@wildhorses4x4.com
