Body Lift Questions and Answers
Will installing a body lift weaken the body of my Bronco?
While body lifts on some vehicles may cause a problem, we don't find this to be true with the Bronco. However, we've seen sloppy installations of many good products, so care must be taken on any modification to insure proper installation. The Bronco body is mounted to the frame in eight spots. The second set back from the front seems to be the weakest spot. Sometimes we see the body bent down over the mount at this location on Broncos with no body lift. Perhaps this is from jumping the vehicle or sometimes there is excessive damage from rust. Body lift or not, the Bronco is still mounted in the same eight spots with the same amount of surface contact.
What additional things will I have to consider when installing a body lift?
This depends on the year and options of your Bronco, different things in this list will apply. Fan shroud relocation , clutch rod, shift rods, sometimes brake lines from master cylinder to valve, rear gas tank hoses, E-brake cables, steering shaft angles and possible bumper relocation.
Will I need to move the radiator?
Some people do opt to lower the radiator. We have never found this to be necessary and have never seen a temperature increase due to leaving the radiator in the original location. We opt to lower the fan shroud on the radiator and use a piece of sheet metal (fan shroud plate) to block off the lower part of the shroud so the air is still pulled through the shroud.
How hard is it to install a body lift?
We have a standard answer for this kind of question. It depends on your own abilities. We do installations here every day, so it seems fairly easy to us. The hardest part is getting the old rubber body mounts out (they're usually rusted together).
Custom Steering Shafts
This is the best option for addressing the steering shaft angle when installing a body lift. We build these to order using only the best components available. At the time of order we will need to know the type of steering box, size and spline count, the amount of body lift you are using and the year of the steering column. Please see additional information in our steering section here.
FEATURED PRODUCTS |
||
 $109.99 1" Custom Body Lift Kit |
 $159.99 3" Body Lift Kit w/ Mounts Deluxe Body Lift |
 $194.99 2" Aluminum Body Lift Kit w/ Mounts Deluxe Body Lift |
|

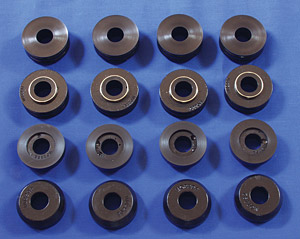

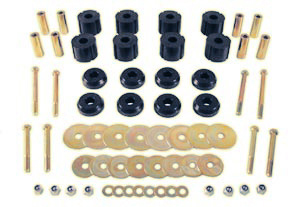

Urethane Body Mounts 66-77 Bronco | |
|
Item #: 1900 Our polyurethane body mounts are a must for frame up projects or just to replace old worn out stock rubber body mounts. We use black graphite impregnated urethane for the self lubricating qualities and they don't change color like some of the colored urethane. Our mounting hardware (sold separately) is all 7/16" grade 8 bolts, all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. Compare that with competitors wimpy 3/8" stock type hardware. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
Rubber Body Mount Set | |
|
Item #: 1905 If you want stock rubber body mounts, here they are. Just like the originals. Other Shopping Features |
||
|

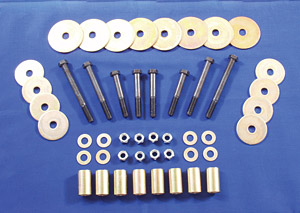

Body Mount Hardware Kit | |
|
Item #: 1908 (includes urethane mount inserts as pictured) CLICK HERE for Installation Instructions Other Shopping Features |
||
|

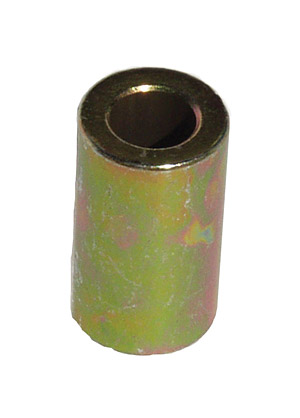

Sleeve for Stock, 2" or 3" Body Lift | |
|
Item #: 1902 Get the fattys! Bought a hardware kit from another supplier? It's not too late to upgrade those cheesy thin wall inserts to WH's fat walls. This is another example of our commitment to the continual improvement philosophy. It's just a small feature but it can make a world of difference when you go to tighten down the bolts. Other Shopping Features |
||
|

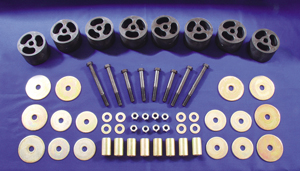

1" Custom Body Lift Kit | |
|
Item #: 1910 1 inch Body Lift Kit Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. The 1" kit uses taller urethane body mounts with no added block for those who want just a little extra clearance. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
2" Custom Body Lift Kit | |
|
Item #: 1916 2 inch Body Lift Kit Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. If the body mounts have been replaced recently you can save money by going with this basic kit otherwise we recommend you purchase the deluxe kit which includes the urethane body mounts. CLICK HERE for Installation Instructions Other Shopping Features |
||
|

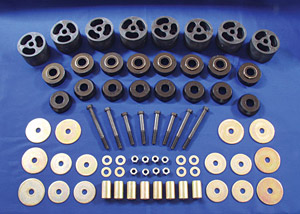

2" Body Lift Kit w/ Mounts Deluxe Body Lift | |
|
Item #: 1932 2" Deluxe Body Lift Kit (including urethane body mounts) Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. This deluxe kit includes urethane body mounts. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
2" Aluminum Body Lift Kit | |
|
Item #: 1911 Our new billet aluminum body lift kit not only adds clearance for your larger tires but looks great too. We use clear anodized solid billet aluminum blocks with CNC machined with grooves for a high tech look. Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
2" Aluminum Body Lift Kit w/ Mounts Deluxe Body Lift | |
|
Item #: 1893 Our new billet aluminum body lift kit not only adds clearance for your larger tires but looks great too. We use clear anodized solid billet aluminum blocks with CNC machined with grooves for a high tech look. Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. The deluxe kit includes our polyurethane Body Mounts to replace those old worn out stock rubber body mounts. We use black graphite impregnated urethane for the self lubricating qualities and they don't change color like some of the colored urethane. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
3" Custom Body Lift Kit | |
|
Item #: 1924 3 inch Custom Body Lift Kit Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. If the body mounts have been replaced recently you can save money by going with this basic kit otherwise we recommend you purchase the deluxe kit which includes the urethane body mounts. CLICK HERE for Installation Instructions Other Shopping Features |
||
|

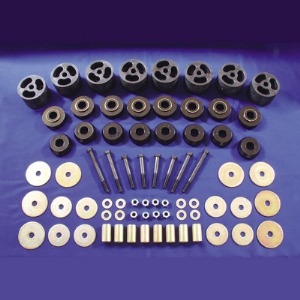

3" Body Lift Kit w/ Mounts Deluxe Body Lift | |
|
Item #: 1940 3' Deluxe Body Lift Kit (including urethane body mounts) Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. This deluxe kit includes urethane body mounts. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
3" Aluminum Body Lift Kit | |
|
Item #: 1913 Our new billet aluminum body lift kit not only adds clearance for your larger tires but looks great too. We use clear anodized solid billet aluminum blocks with CNC machined with grooves for a high tech look. Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. CLICK HERE for Installation Instructions Other Shopping Features |
||
|
3" Aluminum Body Lift Kit w/ Mounts Deluxe Body Lift | |
|
Item #: 1895 Our new billet aluminum body lift kit not only adds clearance for your larger tires but looks great too. We use clear anodized solid billet aluminum blocks with CNC machined with grooves for a high tech look. Install a body lift to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps. WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated mount inserts to prevent over tightening. The deluxe kit includes our polyurethane Body Mounts to replace those old worn out stock rubber body mounts. We use black graphite impregnated urethane for the self lubricating qualities and they don't change color like some of the colored urethane. CLICK HERE for Installation Instructions Other Shopping Features |
||
|

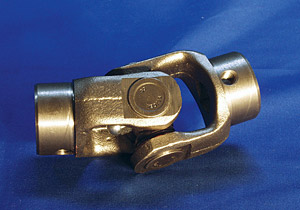

Steering Yoke 3/4 X 3/4 | |
|
Item #: 1964 These yokes can be used to relieve shaft angles on one piece 3/4" round steering shafts like those found on 66-75 manual steering Broncos. The one piece shafts are easy to identify because they have no rag joint or connector yoke other than at the steering box. The Flaming River version is machined from aircraft steel to precision tolerances and is nickel plated to help prevent rust. Other Shopping Features |
||
|
Prices start at: $54.99 Various Options Available |
||
|
Custom Lower Steering Shaft | |
|
Item #: 2161NET We build each of these steering shafts to order. Each custom shaft has two Flaming River billet universal joints, one at each end. Our shafts are zinc plated for good looks and corrosion resistance. The special double D shaft is collapsible and expandable. We machine a lube and spring reservoir into the shaft to provide lifetime lubrication. A dampening spring is added to provide tension between the tube and shaft just like the factory 76-77 collapsible shafts. All shafts come with a rubber dust boot to help keep out contaminants. WH has solved countless steering issues and we build in excess of 50 different lower shafts for all the different combinations that have come our way. These shafts are an excellent way to solve steering shaft angle problems that can result from body lift installations. For manual steering equipped Broncos (66-75) drilling and tapping your existing upper shaft will be necessary for installation. For 73-77 Broncos with a two-piece steering shaft, this will completely replace the lower shaft and it is basically a bolt-in installation. To order a Custom Lower Steering Shaft, we will need to know the type of steering column, the type of steering box, and the amount of body lift on your Bronco. If you have any questions, talk to someone on our sales team and they will walk you through a series of questions designed to get you exactly what you need. (209) 943-0991 CLICK HERE for Installation Instructions  Other Shopping Features |
||
|
Prices start at: $224.98 Various Options Available |
||
|
Extreme Duty Clutch Rod | |
|
Item #: 1942 You can always cut and weld to lengthen your stock clutch rod when installing a body lift on a manual transmission Bronco, but why bother when the stock rods are known for breaking at the ends leaving you stranded without the use of your clutch. We build our EX duty clutch rods using offset clevis ends and include new clutch rod bushings. The rods are adjustable so you can dial-in the perfect length. Other Shopping Features |
||
|
Prices start at: $39.99 Various Options Available |
||
|
Ron Davis Radiator Shroud | |
|
Item #: 5008 Ron Davis Aluminum Radiator Fan Shroud. To complement any engine compartment add one of our aluminum fan shrouds. These will fit most radiators we have seen in the Early Broncos. We offer a stock version and a 2" body lift specific version. This is a must if you expect to keep your Bronco cool on the trail. Without a fan shroud, the fan pulls air around the radiator instead of through it. Other Shopping Features |
||
|
Prices start at: $149.99 Various Options Available |
||
